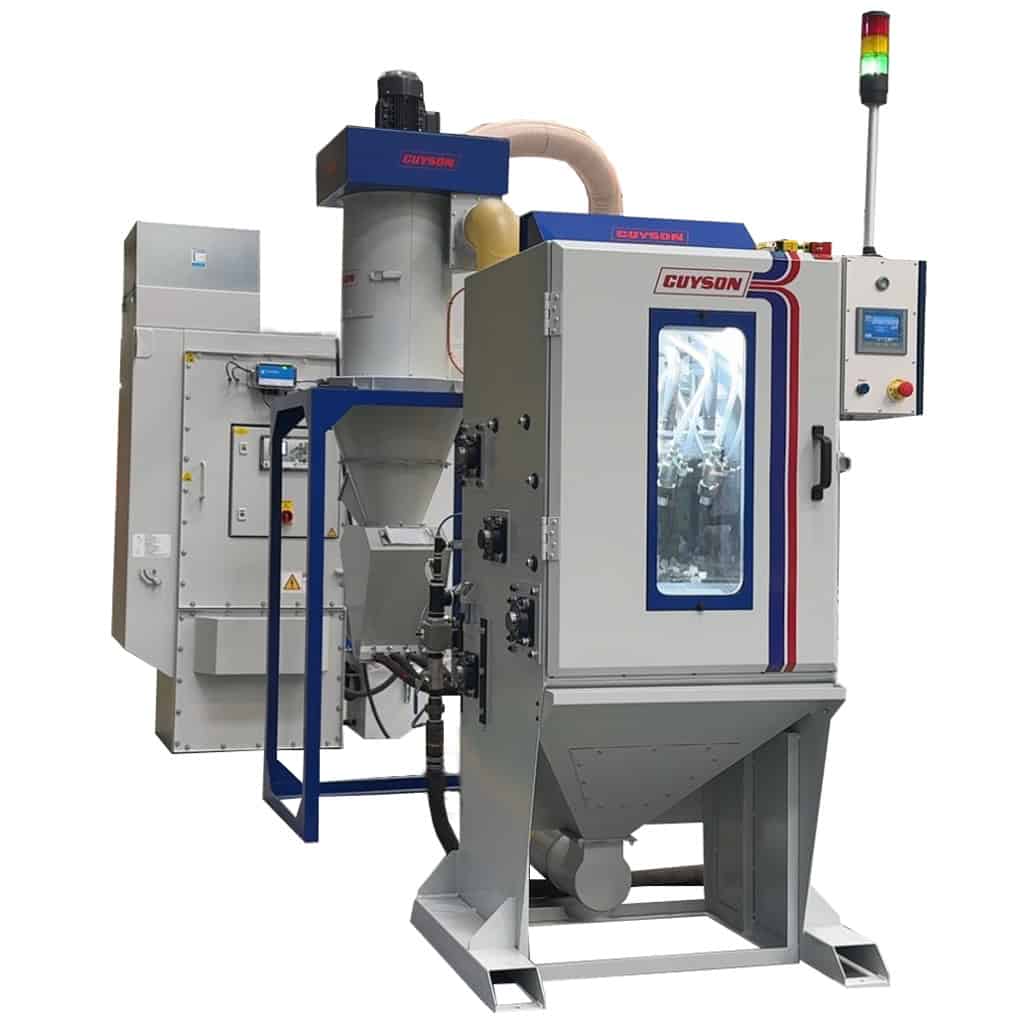

The Guyson EB1 Endless Belt Tumbleblast System combines continuous part movement with controlled blast coverage to deliver advanced batch deburring, deflashing, cleaning, cosmetic finishing and surface preparation.
Guyson EB1 Blast System Features:
Four Guyson Model 900 blast guns to ensure maximum coverage
Abrasive resistant endless belt, driven by a variable speed motor, to ensure continuous part movement
Siemens HMI control panel enabling full control of blast processing and real time tracking
A component load capability of up to 50kg and 30L in volume to maximise productivity of high-volume productions

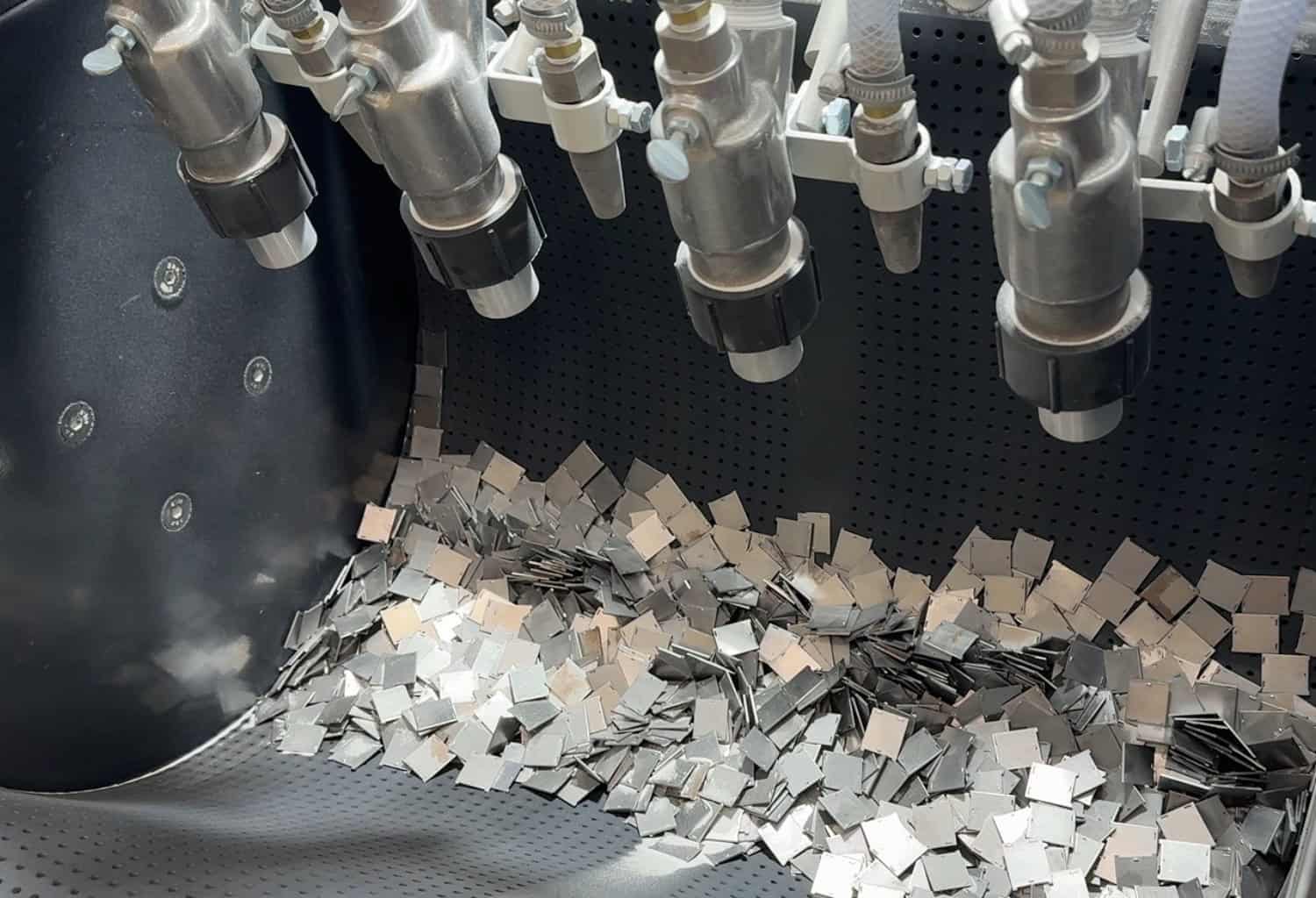

Engineered for saturation grit blasting high volumes of small components, the Guyson EB1 blasting process features four Guyson Model 900 blast guns, mounted on a fully adjustable support arm. This configuration allows each gun to be positioned independently, ensuring the optimum angle of attack and stand-off distance, from both the tumble belt and components for consistent, high-quality results.
Each blast gun is equipped with its own electrical switch, enabling operators to adjust individual guns and the blasting process in real time to suit specific finishing application needs. Once blasting is complete, an integrated post-blast air wash removes any residual blast media and dust, leaving components clean and ready for the next stage of production.
At the core of the Guyson EB1 design is a durable 6mm multi-ply tear and abrasive resistant rubber belt, driven by a variable speed motor. Fully adjustable via the HMI control panel, the belt speed can be precisely matched to the application, ensuring components are tumbled effectively whilst minimising the risk of damage.

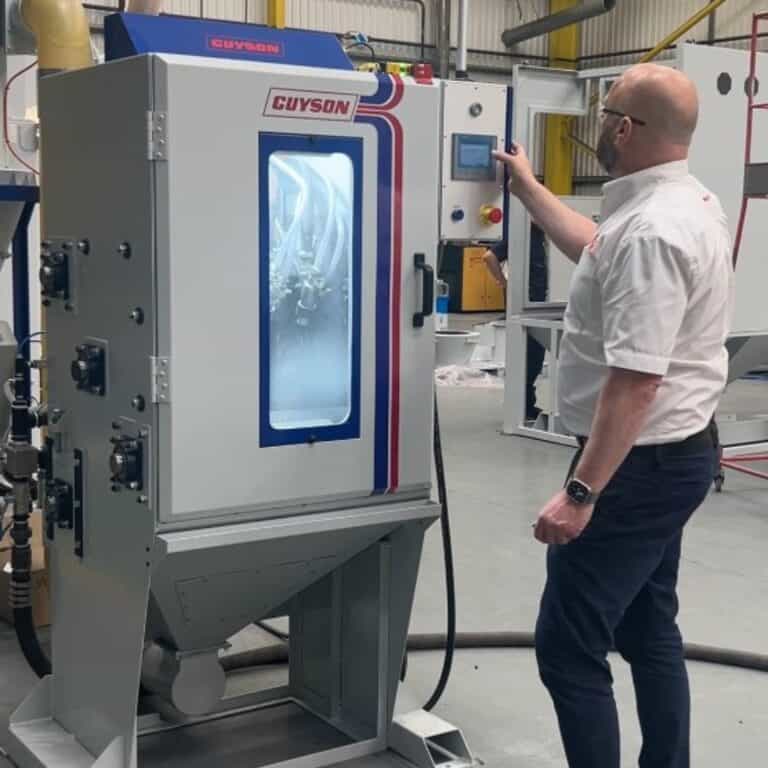

The intuitive HMI/PLC interface gives operators complete control over the blasting process, allowing them to create, edit and store recipes, as well as adjust blasting speed, belt speed and cycle duration to deliver their desired results.
Designed to maximise productivity, Guyson’s small parts batch tumble blasting machine combines fast cycle times with a generous load capacity and flexible process control.
The Guyson EB1’s versatility makes it well suited to a wide range of production volumes, component geometries, finishing requirements and industrial applications.
Find the Right Blast Machine for Your Application
To help customers identify the most suitable system for their requirements, Guyson offer a free, no obligation test and evaluation service. Combining industry leading facilities and an experienced service team, Guyson’s test and evaluation service provides process qualification and tailored recommendations to support informed decision making. Contact the Guyson team today.
